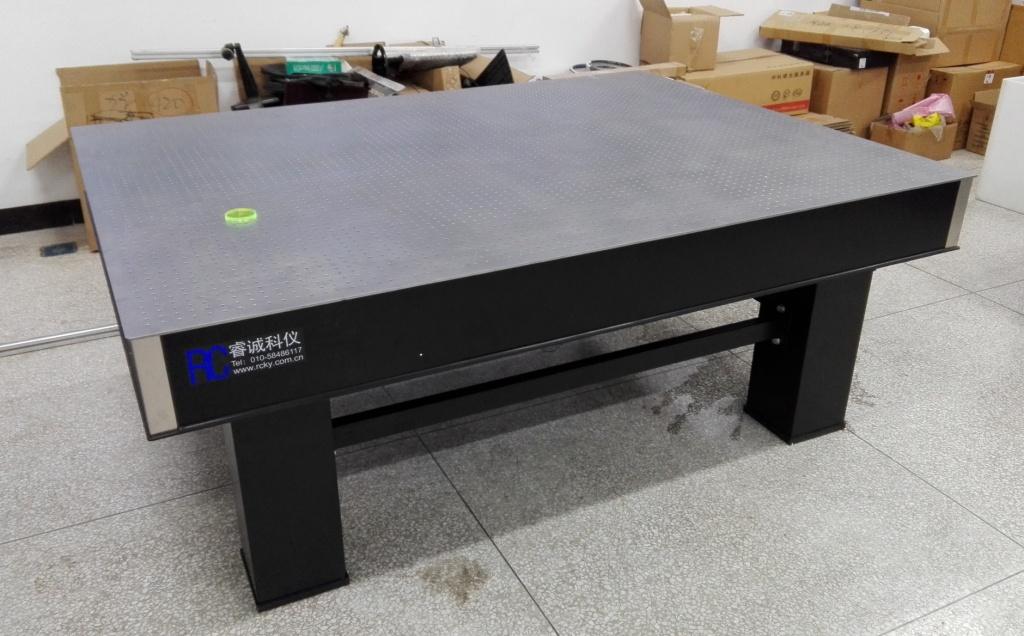

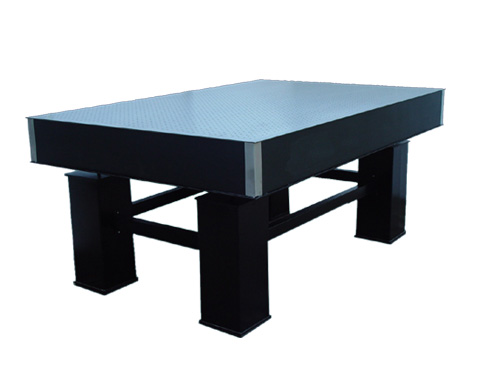

重型光学平台：RC02BD系列
1.重型光学隔振平台，外框采用刚性强、变形
小、优质中碳钢板，精磨台面，平面度高。
2.隔振层利用固有频率低、阻振性能强的蜂窝
结构材料
3.支架采用固体阻尼隔振，调节支撑部分采用耐
磨丝杆和平面推力球轴承，调整水平更加轻松
自如。
4.平面度：< 0.08mm/m2
表面粗糙度：0.8μm～1.6μm
固有频率：3Hz～6Hz
振幅：3μm
尺寸介绍：
| 产品型号 | 长-宽-高 | 备 注 |
| RC02BD600x600x100 | 600-600-800 | 4支撑 M6螺孔孔距25mm |
| RC02BD750x750x100 | 750-750-800 | 4支撑 M6螺孔孔距25mm |
| RC02BD900x600x100 | 900-600-800 | 4支撑 M6螺孔孔距25mm |
| RC02BD1200x900x100 | 1200-900-800 | 4支撑 M6螺孔孔距25mm |
| RC02BDD1500x1000x100 | 1500-1000-800 | 4支撑 M6螺孔孔距25mm |
| RC02BD1800x1200x200 | 1800-1200-800 | 4支撑 M6螺孔孔距25mm |
| RC02BD2000x1000x200 | 2000-1000-800 | 4支撑 M6螺孔孔距25mm |
| RC02BD2000x1200x200 | 2000-1200-800 | 4支撑 M6螺孔孔距25mm |
| RC02BD2000x1500x200 | 2000-1500-800 | 4支撑 M6螺孔孔距25mm |
| RC02BD2400x1200x300 | 2400-1200-800 | 4支撑 M6螺孔孔距25mm |
| RC02BD2400x1500x300 | 2400-1500-800 | 4支撑 M6螺孔孔距25mm |
| RC02BD3000x1000x300 | 3000-1000-800 | 6支撑 M6螺孔孔距25mm |
| RC02BD3000x1200x300 | 3000-1200-800 | 6支撑 M6螺孔孔距25mm |
| RC02BD3000x1500x300 | 3000-1500-800 | 6支撑 M6螺孔孔距25mm |
| RC02BD3500x1200x300 | 3500-1200-800 | 6支撑 M6螺孔孔距25mm |
| RC02BD3500x1500x300 | 3500-1500-800 | 6支撑 M6螺孔孔距25mm |
| RC02BD4000x1500x300 | 4000-1500-800 | 6支撑 M6螺孔孔距25mm |
| RC02BD4500x1500x300 | 4500-1500-800 | 6支撑 M6螺孔孔距25mm |
| RC02BD5000x1500x300 | 5000-1500-800 | 8支撑 M6螺孔孔距25mm |
| RC02BD6000x1500x300 | 6000-1500-800 | 8支撑 M6螺孔孔距25mm |
| RC02BD8000x1500x300 | 8000-1500-800 | 8支撑 M6螺孔孔距25mm |
